Air Core Current Limiting Reactor 60 uH, 60 Amps, 60 Hz, P/N 9970L1

Specifications:

• Air Core Current Limiting Reactor, P/N 9970L1
• 60 uH, 60 Hz, 60 Amps
• For Capacitor Bank Application
• 15 KV Class
• BIL: 95 KV
• Encapsulation: None
• Dimensions: TBD
• Inside Diameter: TBD
• Weight: TBD

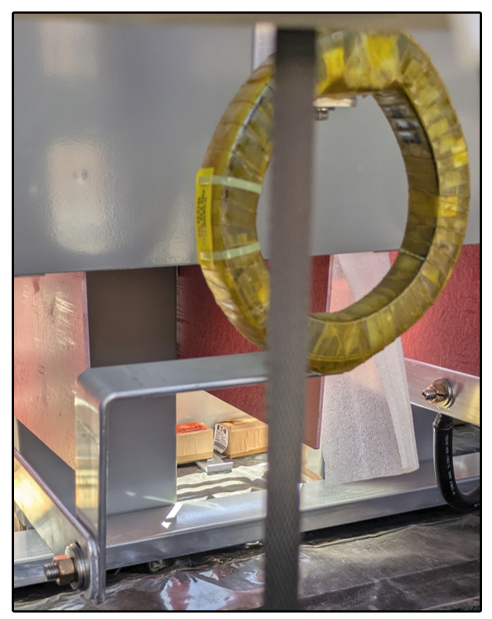

The photo of the air core current limiting reactor is shown below:

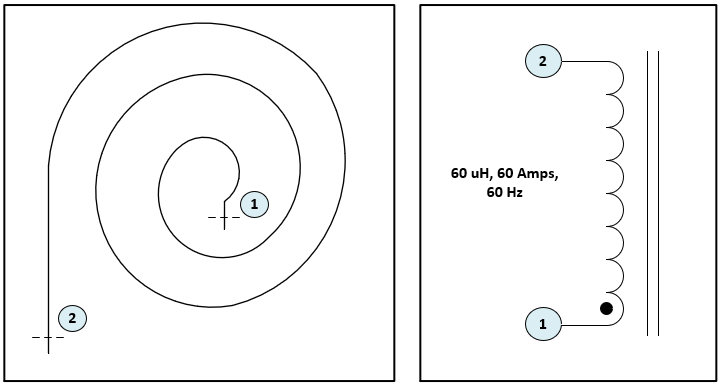

The schematic of the air core limiting reactor is shown below:

All our inductors are custom build to order. For your specific requirements please call us at (714) 624-4740 or send us an e-mail at quote@lcmagnetics.com.
