AIR CORE INDUCTOR, 10 uH, 500 Amps, 3 KHz to 10 KHz
Specifications:
- Air Core Inductor (1, 2): 10 uH, 500 Amps RMS, 3 KHz to 10 KHz, P/N 10189L1
- Secured with GPO3 1/4” Fiberglass
- Air Core Inductor with GPO3: 25” H x 30” W x 30” D or TBD
- Copper winding
- Weight: 100 lbs. or TBD
- 10” clearance is required around the air core inductor.

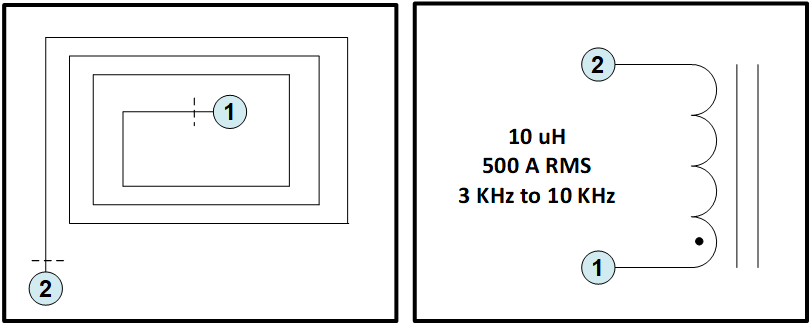

The schematic diagram of the air core inductor is shown below.
The dimensions of the air core inductor without any mounting provisions are shown below. 10” clearance using non-magnetic material all around the inductor is necessary for proper operation of the inductor.
The air core inductor is secured with GPO3 1/4” Fiberglass as shown below.
The air core inductor with fiberglass walls and fiberglass bottom plate is shown below.
