AIR CORE CURRENT LIMITING REACTOR

The air core current limiting reactor P/N 10324L is designed for 480 VAC, 3-phase, 60 Hz systems requiring dependable fault-current reduction. Rated for 450 amps continuous current, this custom reactor assembly provides approximately 160 µH per phase and is designed to limit fault current to about 5,000 amps.

Specifications:

• Dry-Type Current Limiting Reactor, 3 PH, 60 Hz, P/N 10324L
• Three inductors connected side-by-side (One for each phase)
• Continuous current: 450 Amps per phase
• Available fault current: 21,170 Amps
• Current Limit: 5000 Amps
• Inductance value: 160 uH
• Copper Windings.
• Enclosure: 84” W x 42” H x 42” D
• Estimated weight: 600 lbs.

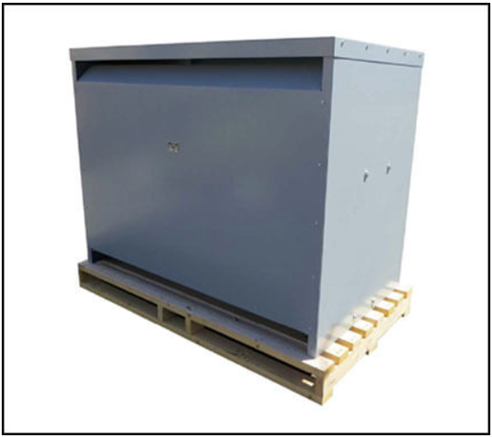

The photo of the enclosure (84” x 42” x 42”) is shown below:

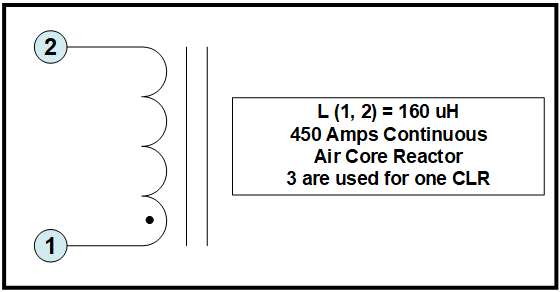

The schematic is shown below:

The air core reactors within the CLR are shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
