AIR CORE CURRENT LIMITING REACTOR
Specifications:
- Air Core Current Limiting Reactor, 3 PH, 60 Hz, P/N 10274L
- Continuous current: 1,892 Amps
- Available fault current: 29,750 Amps
- Inductance value: 62 uH
- Copper Windings.
- Enclosure: 48” W x 48” H x 48” D
- Estimated weight: 1950 lbs.

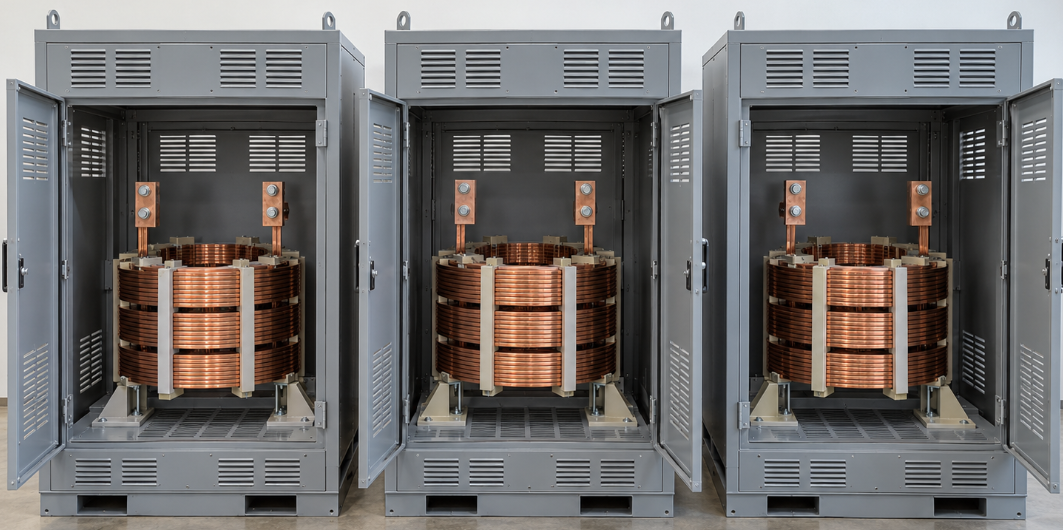

The photo of the inductor in the enclosure is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
CONTACT FOR A FREE QUOTE
