AIR CORE CLR, 40 uH, 480 VAC, 1267 AMPS, 1 PH, 60 HZ
Specifications:
• Air Core CLR, 40 uH, 1 PH, 60 Hz, P/N 10261L1
• Continuous Current: 1267 Amps RMS at 480 VAC
• Aluminum Windings
• Power Factor: 0.95 leading
• Indoor Fiberglass Enclosure: 44” W x 36” D x 36” H or TBD
• Estimated Weight with Indoor Fiberglass Enclosure: 200 lbs.
• Three single phase 10261L1 will make one three phase CLR system

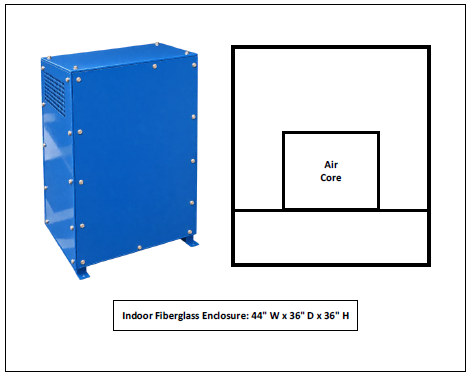

The air core inductor inside the indoor fiberglass enclosure is shown below. The dimensions of the indoor fiberglass enclosure are 44” W x 36” D x 36” H.

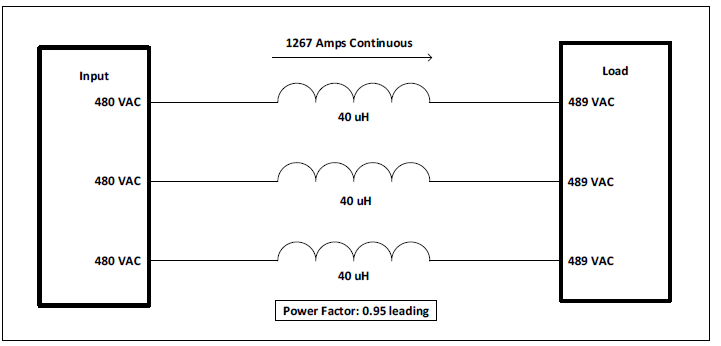

The schematic of the air core reactor is shown below. Three separate inductors will be in three separate indoor fiberglass enclosures. Power factor is 0.95 leading.

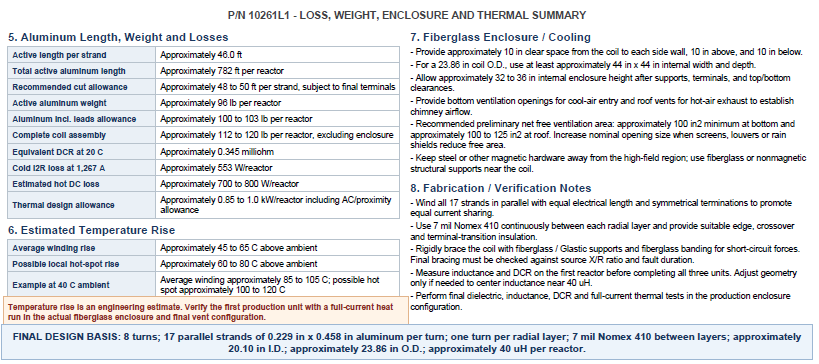

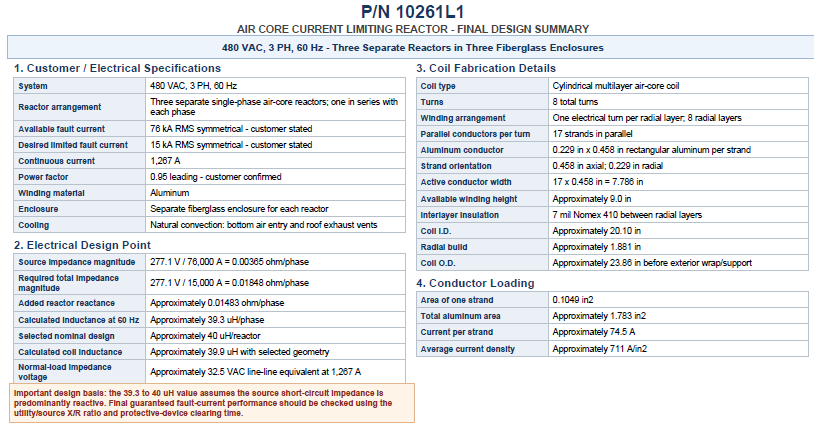

See final design summary below:
