AIR CORE CLR, 25 KV, 1 PH, 60 Hz

Specifications:

• Air Core CLR, 25 KV, 1 PH, 60 Hz, P/N 10260L1
• Continuous Current: 500 Amps RMS, 2 Ohms, 5.305 mH
• Short Circuit Current: Greater than 5 KA for 2 seconds, (We chose 7.5 KA RMS
symmetrical for 2 seconds)
• Aluminum Windings
• Fiberglass Enclosure: 60” W x 60” D x 72” H
• Estimated Weight without Fiberglass Enclosure: 630 lbs.
• Estimated Weight with Fiberglass Enclosure: 800 lbs.
• Three single phase 10260L1 will make one three phase CLR system
• Will meet CSA requirement

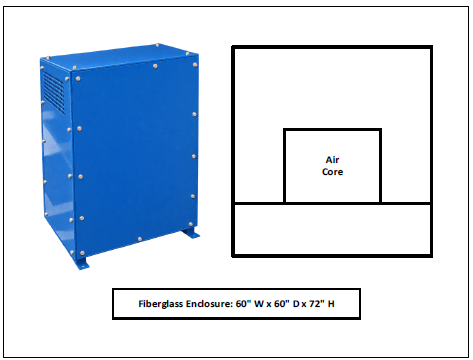

The air core inductor inside the fiberglass enclosure is shown below. The dimensions of the fiberglass enclosure are 60” W x 60” D x 72” H.

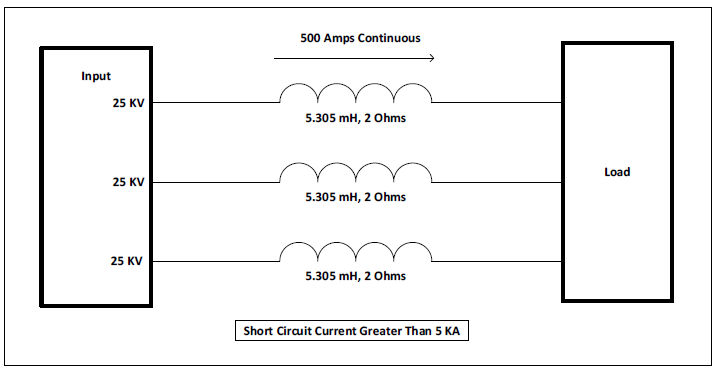

The schematic of the air core reactor is shown below. Three separate inductors will be in three separate fiberglass enclosures.

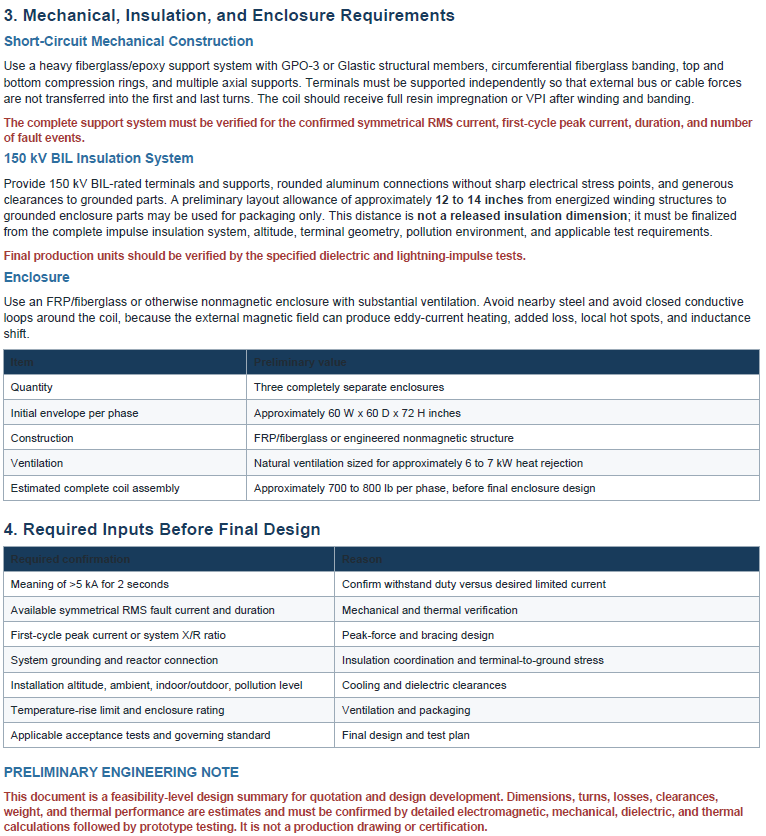

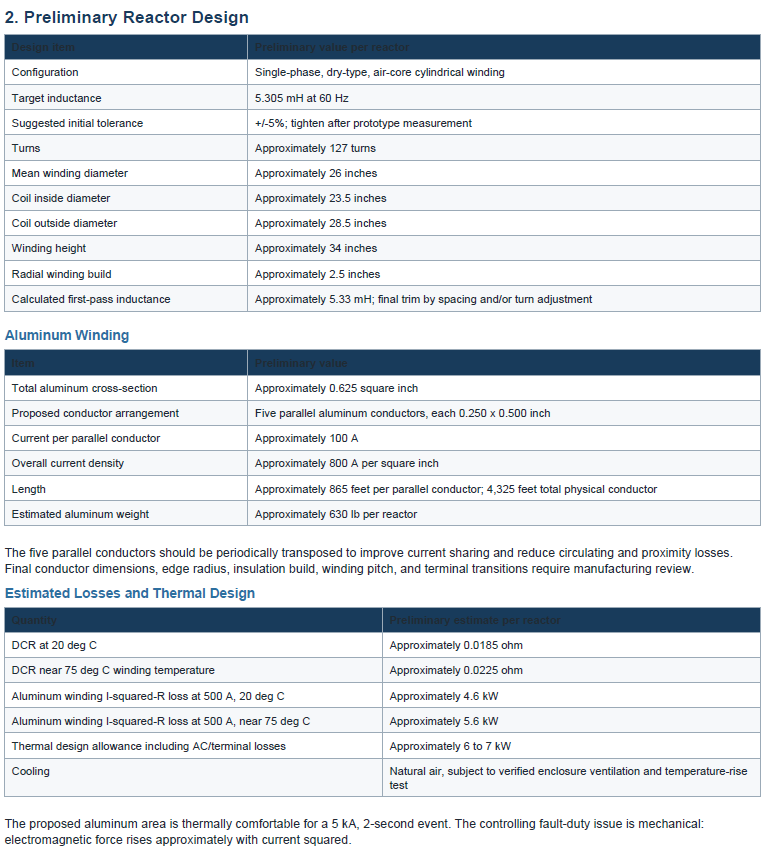

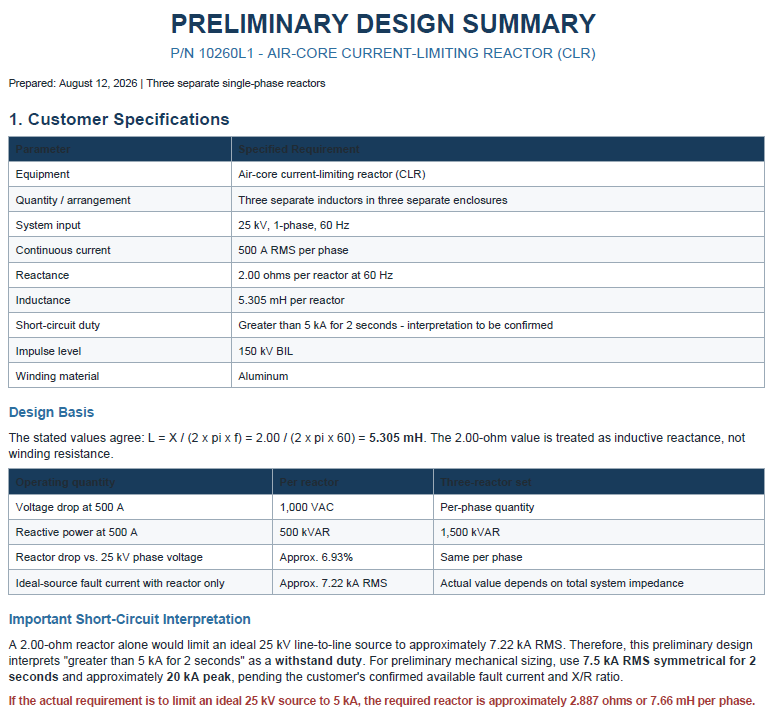

See final design summary below:
