770 KVA, 3 PH, ISOLATION TRANSFORMER

Specifications:
• Isolation Transformer: 770 KVA, 3 PH, 60 Hz, P/N 10214L
• Primary (H1, H2, H3): 460 VAC L-L, Delta, 966.4 Amps
• Secondary (X0, X1, X2, X3): 460 VAC L-L, 266 VAC L-N, Wye, 966.4 Amps
• Aluminum Windings
• Temperature Rise: 125 degrees K (Max)
• NEMA 3R Enclosure Dimensions: 1650 mm x 900 mm x 1900 mm
• Weight: 1550 kg.

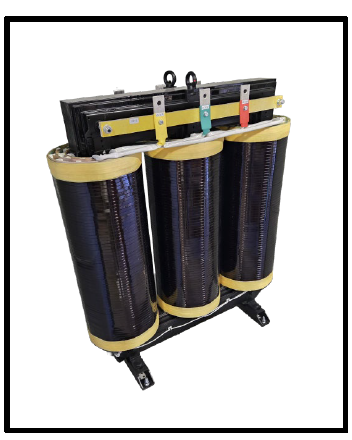

The photo of a similar transformer is shown below:

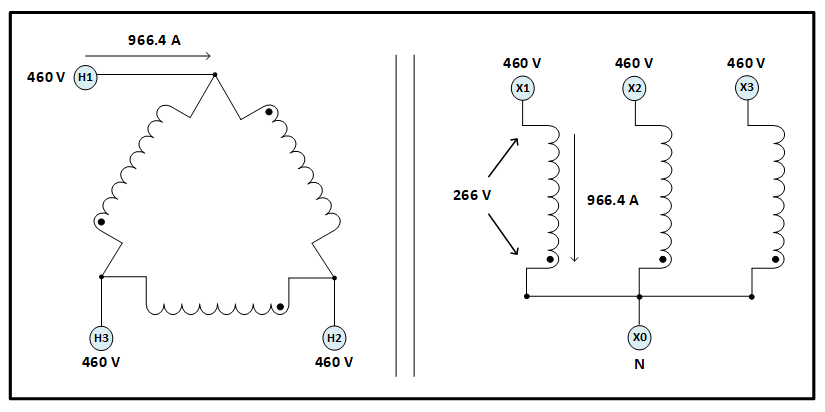

The schematic diagram of the transformer is shown below:

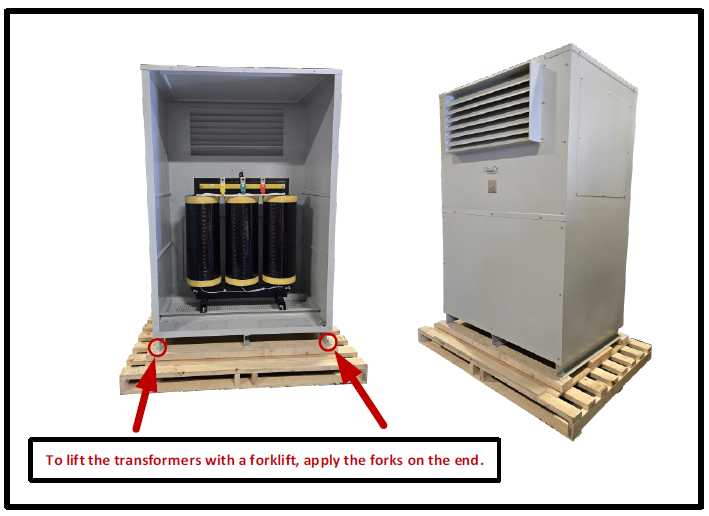

The photo of a similar transformer in a NEMA 3R enclosure is shown below:

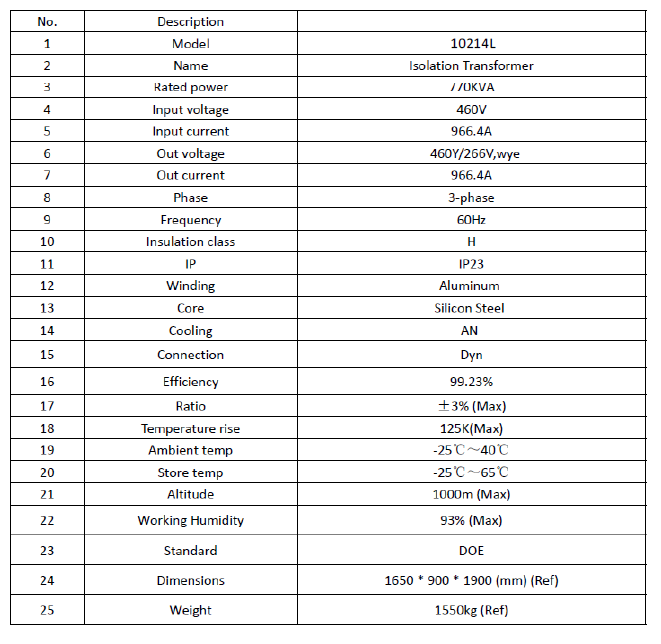

The specification sheet of the transformer in a NEMA 3R enclosure is shown below:
