54 KVA Transformer, Wye to Wye, 1 PH

Specifications:

• Wye to Wye Transformer: 54 KVA, 1 PH, 60 Hz, P/N 10178L
• Primary: 600 VAC L-L, Wye (H1, H2, H3)
• Secondary: 10 VAC L-L, 3000 Amps, Wye (X1, X2, X3)
• Three 1 PH Transformers (T1, T2, T3) will be integrated to form a Wye to Wye
• Copper windings
• Primary copper bus bars are 0.25” x 1.00”
• Secondary copper bus bars are 0.50” x 4.00”
• Indoor Floor Mount Enclosure: 65” W x 36” D x 50” H
• Estimated weight: 1000 lbs. or TBD

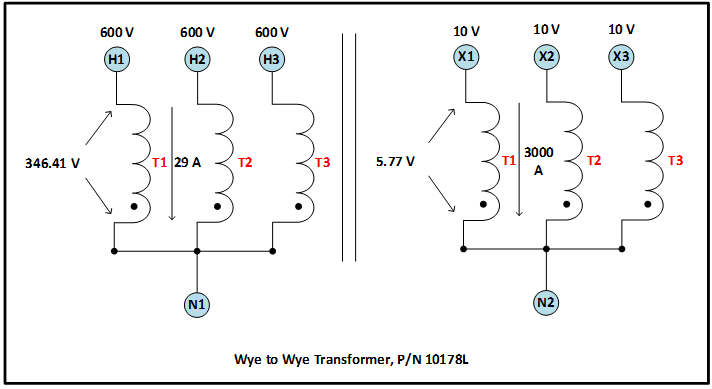

The schematic of the transformer is shown below.

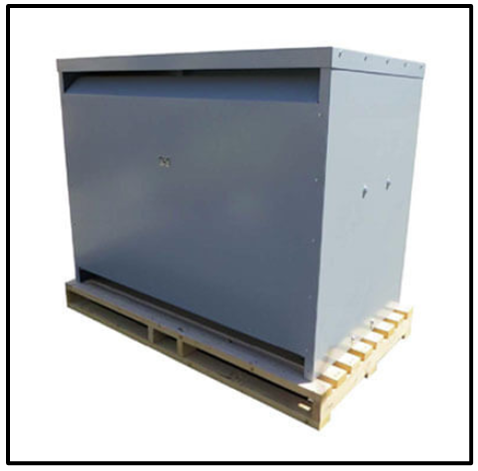

The photo of the indoor floor mount enclosure is shown below. T1, T2, and T3 with jumpers and are installed inside the 65” W x 36” D x 50” H space.

The specifications of T1, T2, and T3 are shown below.

• Transformer 18 KVA, 1 PH, 60 Hz (T1 or T2 or T3)
• Primary 346.41 VAC (1, 2), 29 Amps
• Secondary 5.77 VAC (3, 4), 3000 Amps
• Open core and coil: 12” W x 12” D x 12” H or TBD
• Primary bus bars are 0.25” x 1.00”
• Secondary bus bars are 0.50” x 4.00”

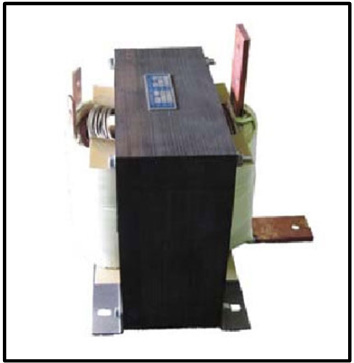

The photo of T1 or T2 or T3 is shown below.

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
