TOTALLY ENCLOSED NON-VENTILATED (TENV) TRANSFORMER, 500 KVA
The 500 kVA TENV Transformer 3 Phase 60 Hz is a high-performance industrial power transformer engineered for reliable energy distribution in demanding commercial and industrial applications. Built with a totally enclosed non-ventilated (TENV) design, this unit ensures superior protection against environmental contaminants such as dust, moisture, and airborne particles.
This transformer is ideal for installations requiring consistent voltage regulation, low maintenance, and long service life. Its robust construction allows it to operate efficiently in harsh indoor or outdoor environments without the need for forced ventilation.

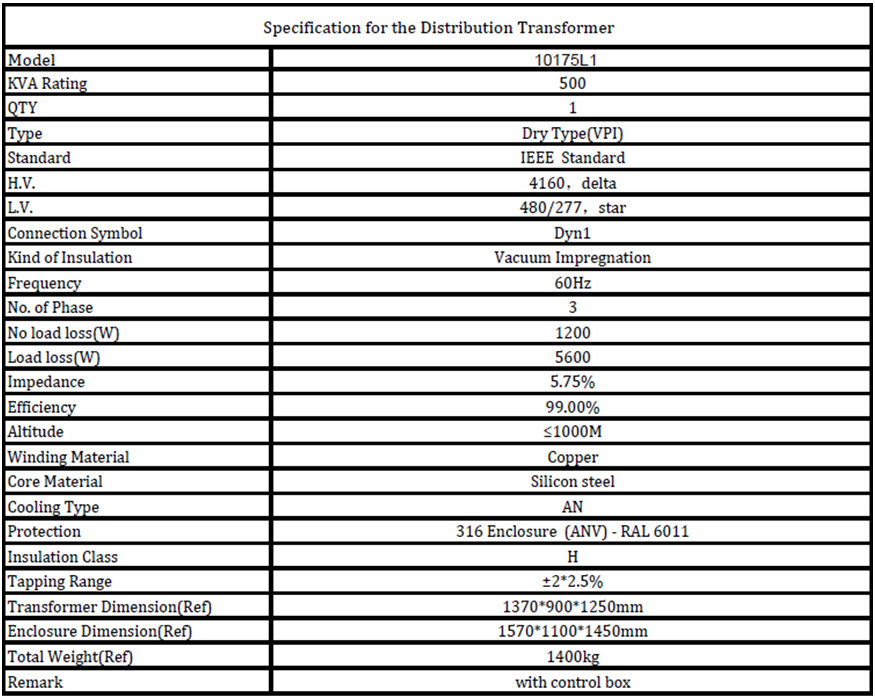

The specifications of the transformer are summarized below:

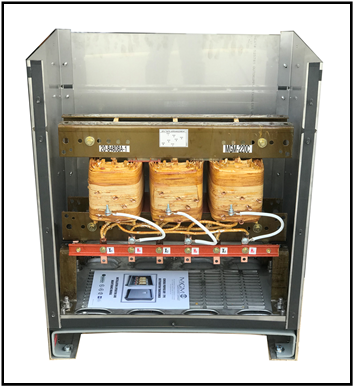

The photo of the transformer inside the NEMA 4X Stainless Steel enclosure is shown below:
The photo of the Totally Enclosed Non-Ventilated Transformer is shown below:
The schematic diagram is shown below.
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
