400 HZ TRANSFORMER, 250 VA, 1 PH

L/C Magnetics manufactures the 400 Hz Transformer, P/N 10321L, designed for electrical equipment requiring single-phase, 400 Hz AC power. This transformer is rated at 250 VA and provides a nominal 36 VAC secondary output from a 115 VAC primary input.

The transformer features copper windings, open core and coil construction, and screw-in J-lug electrical connections. Its compact construction makes it suitable for integration into electrical systems where installation space is limited.

Specifications:

• 400 Hz Transformer, 250 VA, 1 PH, P/N 10321L
• Primary: 115 VAC, 2 Amps, (1, 2)
• Secondary: 36 VAC, 7 Amps, (3, 4)
• Copper Windings
• Open Core & Coil, 4.5” x 4.5” x 4.5”
• Primary and Secondary connections are screw-in J-lugs
• Weight: 7 lbs.

The photo of a similar transformer is shown below.

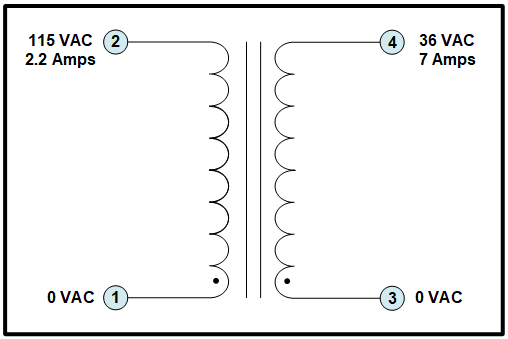

The schematic diagram of the transformer is shown below.
