400 HZ TRANSFORMER, 2.4 KVA, 1 PH, P/N 19837

Specifications:

  • Transformer, 2.4 KVA, 1 PH, 400 Hz, P/N 19837
  • Primary: 100 VAC, 24 A
  • Secondary: 480 VAC, 5 A
  • Copper winding
  • Primary and secondary connections are solder lugs
  • Open core and coil: 6″H x 7.5″W x 6″D approximately

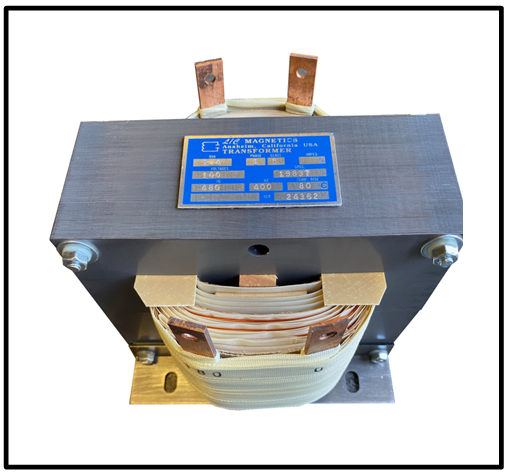

The photo of the transformer is shown below:

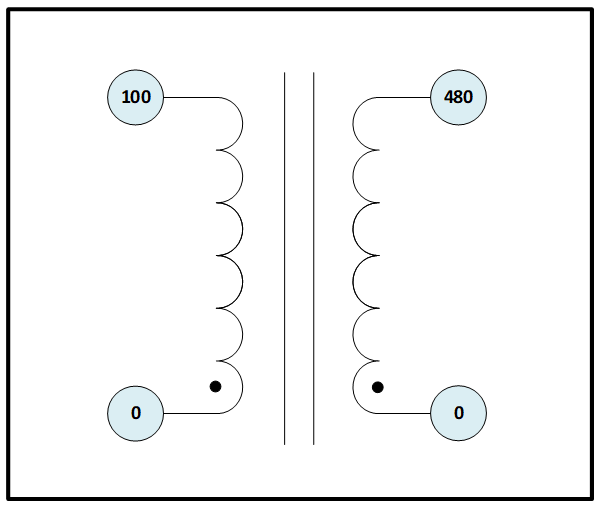

The schematic diagram is shown below:
