400 HZ ISOLATION TRANSFORMER 400 KVA, 10055L3

The L/C Magnetics 400 kVA, 400 Hz Isolation Transformer is designed to provide dependable galvanic isolation and stable power delivery for high-frequency electrical systems. Constructed with copper windings and a Class H insulation system, this transformer offers high efficiency, low losses, and reliable performance in demanding industrial, aerospace, and military environments.

Electrical Ratings & Performance

• Rated Power: 400 kVA
• Phase: Three Phase
• Frequency: 400 Hz
• Primary Voltage: 440 VAC L-L, Delta
• Secondary Voltage: 440 VAC L-L, Delta
• Rated Current: 525 Amps
• Efficiency: ≥ 98% at full load
• Voltage Regulation: ≤ 3% at full load
• Typical Impedance: 5–6% (application dependent)

Construction Features

• High-quality copper windings for electrical conductivity and thermal performance
• Grain-oriented silicon steel core optimized for 400 Hz operation
• Class H insulation system providing increased thermal margin and long service life
• Precision coil and core assembly to minimize losses and leakage reactance
• Robust mechanical bracing to withstand electrical and mechanical stresses

Cooling System

• AN/AF cooling (Air Natural / Air Forced)
• Designed for continuous operation at rated load under normal ambient conditions
• Forced-air cooling available for enhanced thermal performance when required

Safety & Isolation

• Full electrical isolation between primary and secondary windings
• Designed to handle inrush currents and short-circuit conditions typical of 400 Hz systems
• Grounding provisions provided for safe system integration
• Optional thermal monitoring and protective devices available upon request

Mechanical Characteristics

• Indoor Enclosure: NEMA 1
• Approximate Dimensions: 52.0” W × 31.5” D × 67.0” H (or TBD)
• Approximate Weight: 2866 lbs (or TBD)
• Durable industrial-grade finish for indoor environments

Standards & Quality

• Designed and manufactured in accordance with applicable IEEE C57 standards
• Construction aligned with NEMA guidelines
• RoHS-compliant materials available upon request

Typical Applications

• Aerospace ground power systems
• Military and defense power equipment
• Aircraft maintenance and test facilities
• High-frequency industrial power distribution
• Laboratory and research installations

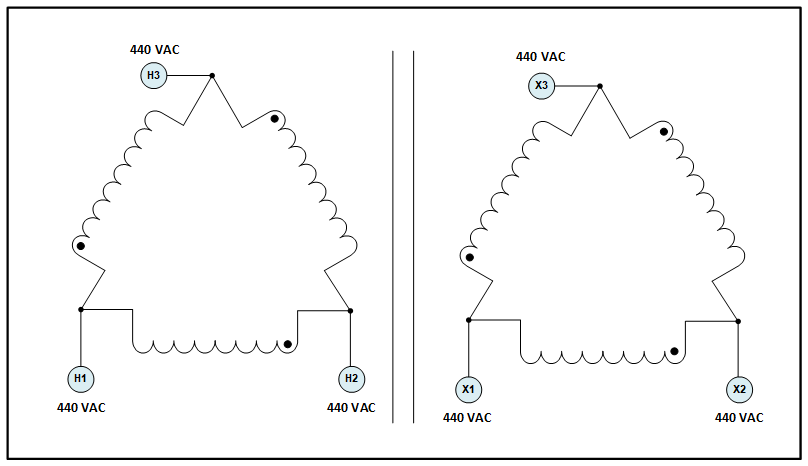

The diagram of the transformer is shown below:

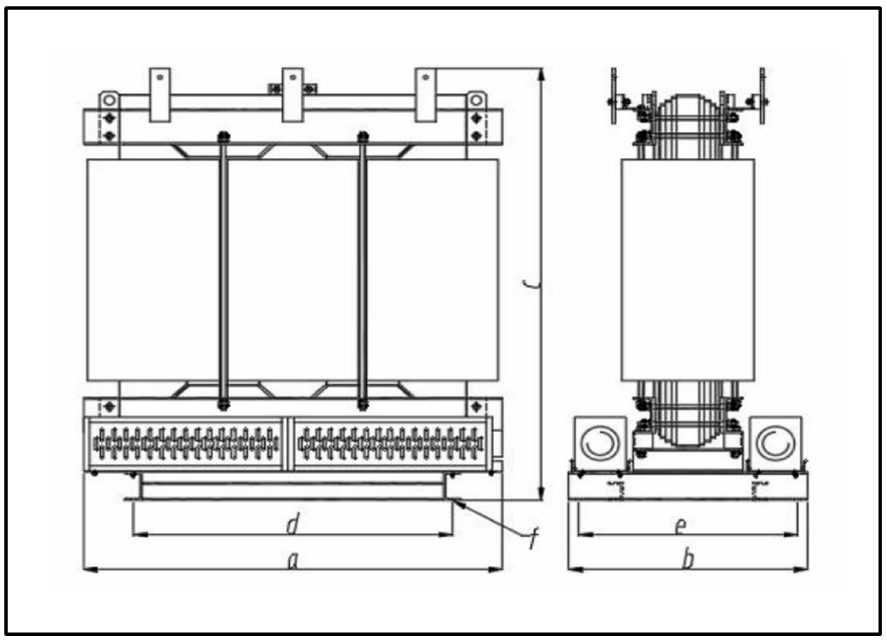

The photo of the indoor enclosure (52.0” W x 31.5” D x 67.0” H) is shown below:

Custom Engineering Available

L/C Magnetics specializes in custom transformer solutions. Voltage configurations, impedance levels, shielding options, and monitoring accessories can be tailored to meet specific application requirements.
