400 HZ INDUCTOR WITH 4 TAPS, P/N 19832L

Specifications:

  • Inductor with Taps, 2 KVAR, 4 KVAR, 6 KVAR, 10 KVAR, P/N 19832L
  • L (1, 2) = 1.59 mH +/- 5 %
  • L (1, 3) = 2.65 mH +/- 5 %
  • L (1, 4) = 3.98 mH +/- 5 %
  • L (1, 5) = 7.96 mH +/- 5 %
  • Voltage: 200 VAC
  • Frequency: 400 Hz
  • Dimensions: 5.3″ W x 5.5″ H x 6.0″ D
  • Weight: 19 lbs or less
  • Bus bars are 1/8″ x 5/8″ with one hole
  • Copper winding construction
  • 4 Mil C Core
  • Single Coil Construction
  • No mounting provisions are provided

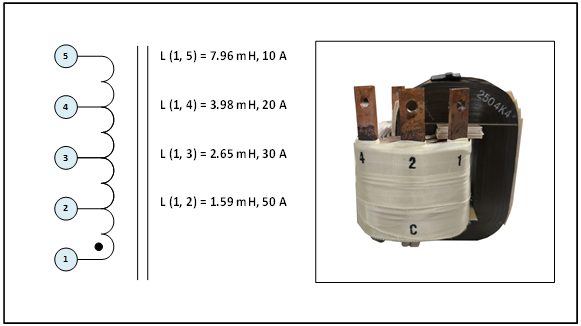

Details of the inductor are shown below:
