40 KVA TRENCH MOUNT TRANSFORMER, 400 HZ
Specifications:
- Trench Mounted Transformer, 3 PH, 400 Hz, P/N 10327L1
- Primary: 380 VAC, Delta, 60.8 Amps Line current
- Secondary: 200/115 VAC, Wye, 115.5 Amps
- Copper windings
- Insulation Class H, 180 degrees C.
- IP66 Enclosure
- Lift rings are added to aid the installation of transformer
- Enclosure dimensions: 30” W x 24” H x 30” D
- Total Weight: 375 lbs.

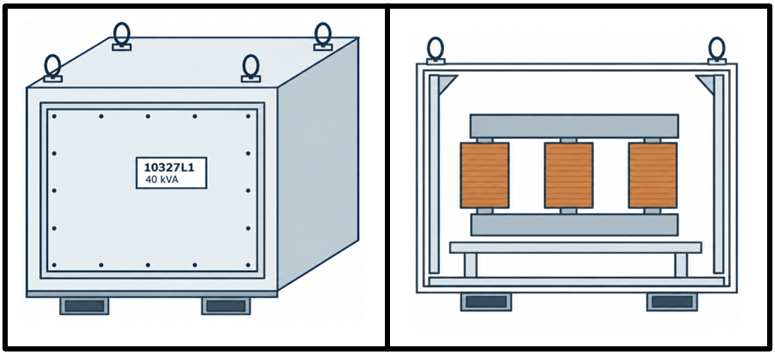

The diagram of the transformer is shown below:
The schematic is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
