3500 KVA OIL-IMMERSED OUTDOOR ENCLOSURE TRANSFORMER
Specifications:
- Oil-Immersed Outdoor Enclosure Transformer: 3500 KVA, 3 PH, 60 Hz, P/N 10332L
- Primary: 12470 VAC, 162 Amps, Delta, +/- 5 % and +/- 2.5 % taps
- Secondary: 480 VAC L-L, 4209.8 Amps, Wye
- Copper Windings
- NEMA 3R Enclosure Dimensions: 2700mm D x 2000mm W x 2000mm H
- Total Weight: 8200 kg.
- UL Certification: None
- Warranty: 24 months
- Private Label for L/C Magnetics Inc., Made in China
- Units will be shipped by ocean freight from China to destination

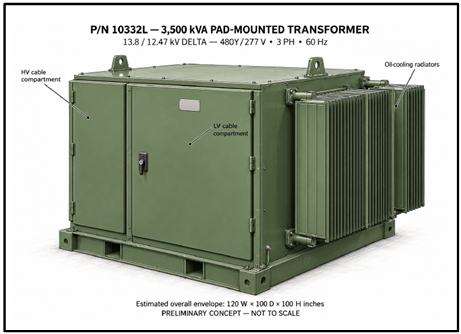

The photo of the oil-immersed outdoor enclosure transformer is shown below:

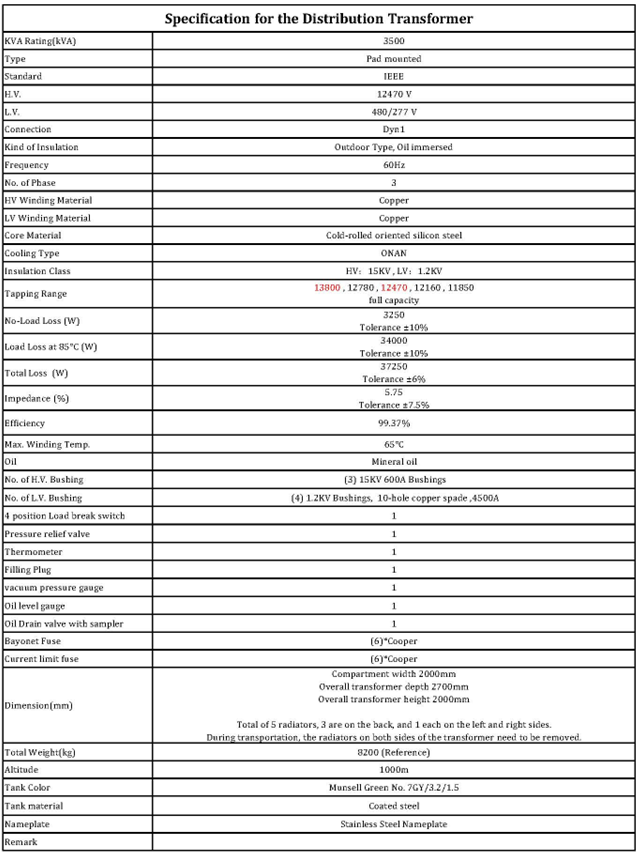

The specification sheet of the transformer in a NEMA 3R enclosure is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
