SCOTT T TRANSFORMER 350 KVA
Specifications:
- Scott T Transformer, 350 KVA, 3/2 PH, 60 Hz, P/N 10150L2
- Primary: 480 VAC L-L, 3 PH, 364.6 Amps (1, 2, 3)
- Secondary (MAIN): 300 VAC, 1 PH, 583.3 Amps (4, 5)
- Secondary (TEASER): 300 VAC, 1 PH, 583.3 Amps (6, 7)
- Indoor Floor Mount Enclosure: 65” W x 36” D x 50” H or TBD
- Copper Windings
- Weight: 2800 lbs. each or TBD

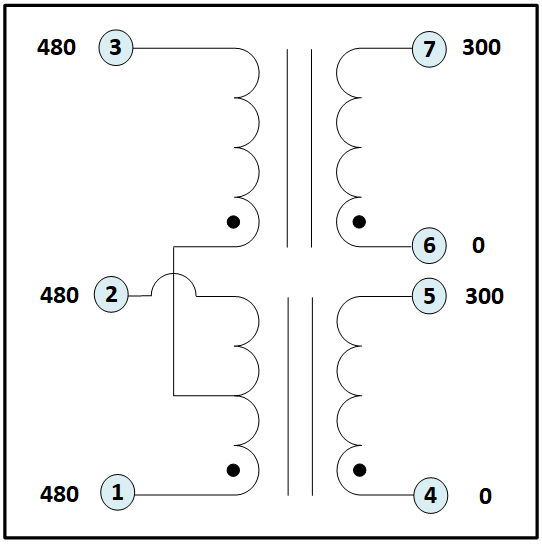

The schematic diagram is shown below:

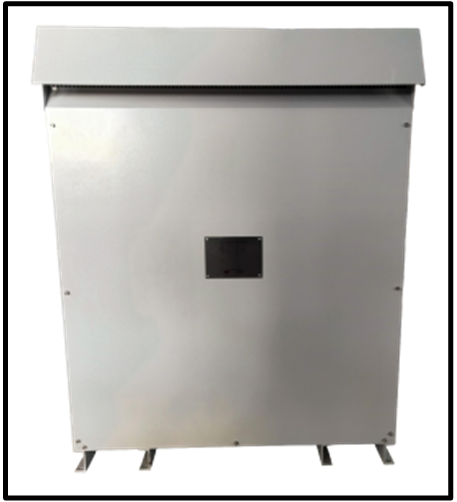

A photo of the enclosure with the nameplate is shown below:

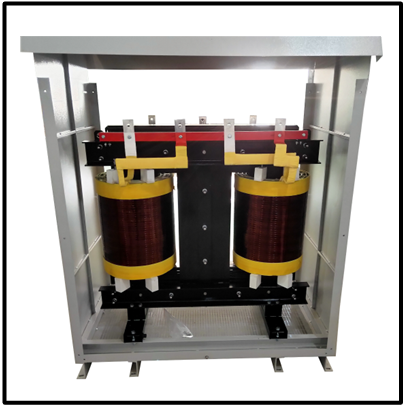

A photo of the transformer inside the enclosure is shown below:

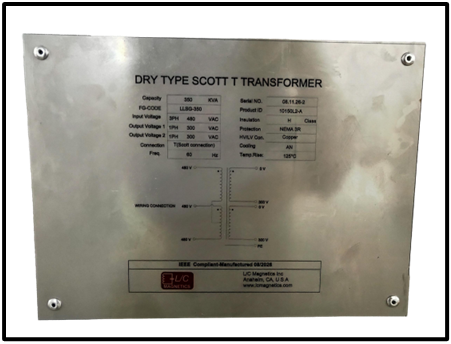

The nameplate is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
