GAPPED INDUCTOR, 30 mH, 50 ARMS, 60 HZ

L/C Magnetics designed this rugged, copper-wound gapped inductor for reliable continuous-duty filtering and current control. Its naturally cooled construction, controlled air gap, and heavy-duty bus-bar terminals provide stable inductance and dependable performance in demanding industrial power applications.

Customer requirement is shown below:

• Gapped inductor, P/N 10229L5
• L (1, 2) = 30 mH ± 10%, 50 Amps, 60 Hz
• Open core and coil dimensions: 7.5”H x 7.5”W x 7.5”D
• Bus bar: 1/8” x 5/8” with a hole
• Weight: 230 lbs. approximately

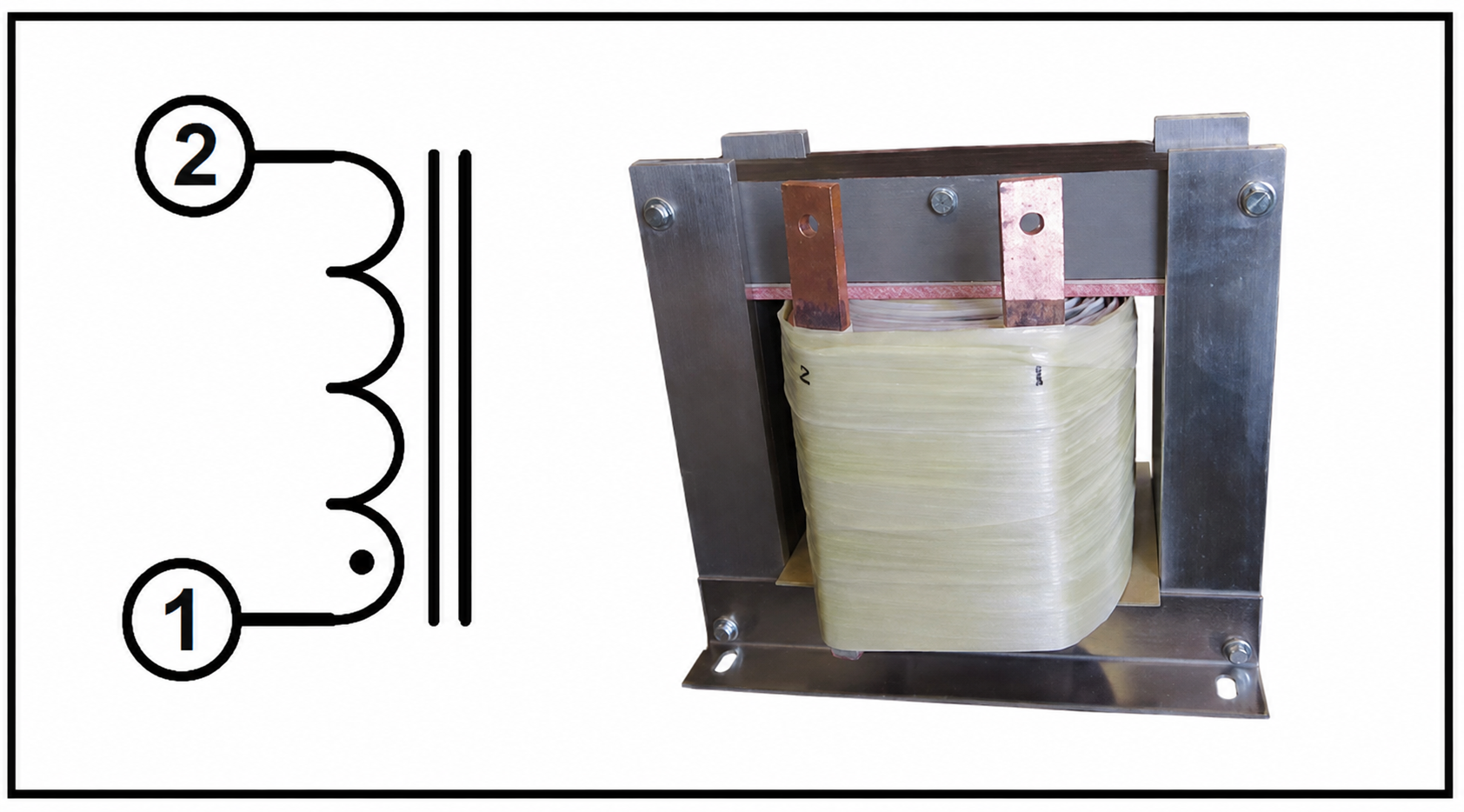

The photo of the gapped inductor is shown below:

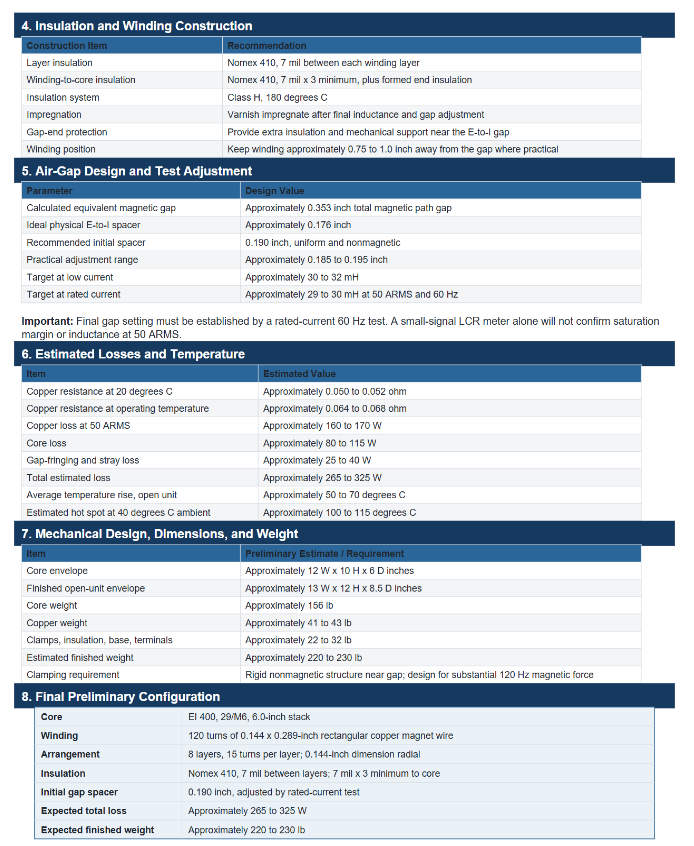

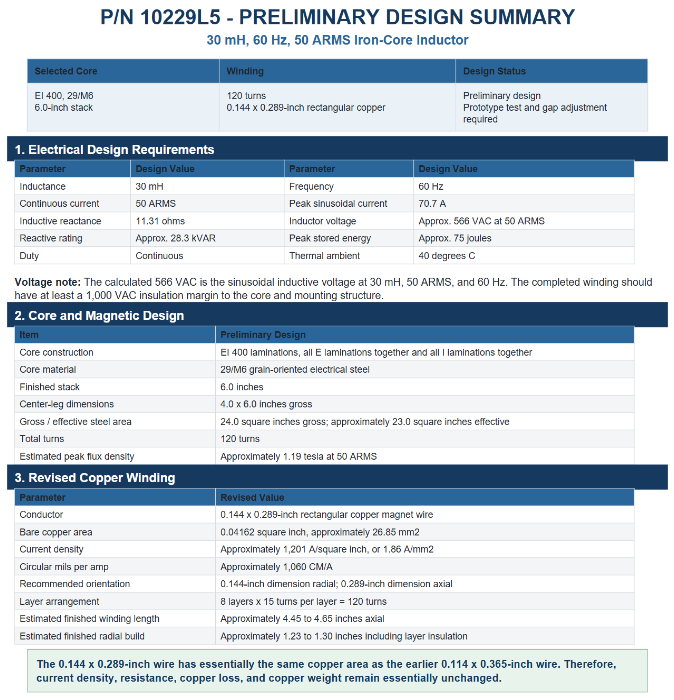

See Preliminary Design Summary below:

To discuss your specific application, please call us toll free at (800) 595-7096, or send us an email at quote@lcmagnetics.com.
