3 PH TO 1 PH TRANSFORMER 35 KVA

A Three Phase to One Phase transformer rated at 35 kVA is designed to convert 240 VAC three-phase (3 PH) input power into 240 VAC single-phase (1 PH) output power. This 3 PH to 1 PH transformer is commonly used to supply single-phase loads from an existing three-phase electrical system, providing efficient phase conversion without the need for rotary or electronic converters. The transformer is housed in a protective enclosure, offering mechanical protection and suitability for industrial or commercial installations where durability and safety are required.

Specifications:

• 3 PH to 1 PH Transformer: 35 KVA, 60 Hz, P/N 19413N-1
• Primary: 240 VAC, Delta, 84.19 Amps (1, 2, 3)
• Secondary: 240 VAC, 146 Amps (4, 5)
• Primary and secondary copper bus bars are 1/4” x 1” with one hole.
• Copper windings
• Indoor Enclosure: 36” H x 28” W x 18” D
• Approvals: None
• Estimated weight: 600 lbs. or TBD

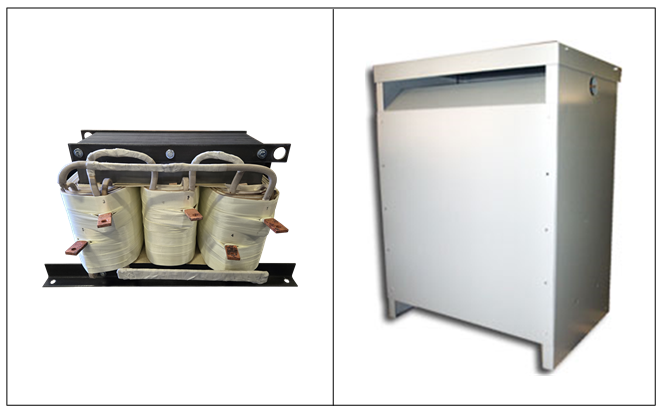

The photo of the transformer and enclosure are shown below:

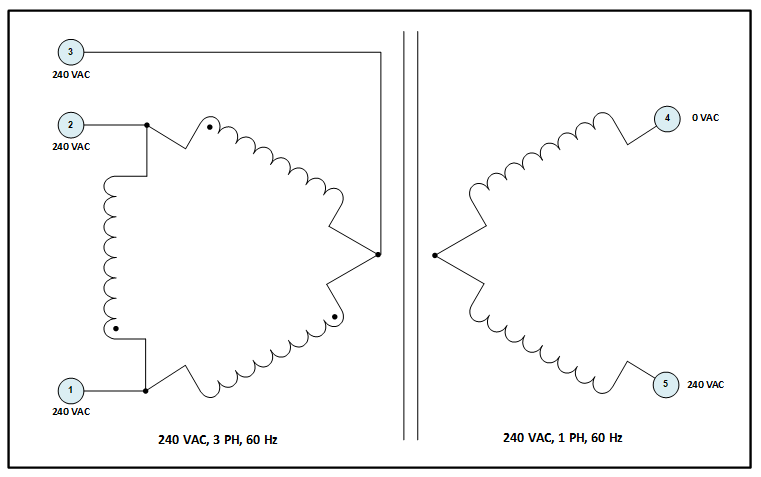

The schematic diagram is shown below:

To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
