TRANSFORMER 250 VA, 1 PH, 25 KHz

The 250 VA 25 kHz transformer, P/N 10235L1B, is a custom single-phase, high-frequency transformer for square-wave power conversion applications. It provides a nominal 1:4 voltage transformation ratio. Therefore, it converts a 100 V peak-to-peak primary input into a 400 V peak-to-peak secondary output.

The transformer uses an ETD 59/31/22 ferrite core made from 3C97 material. In addition, the design includes an E + E core pair and a 24-pin bobbin. The bobbin supports the windings mechanically; however, it does not provide the electrical connections. Instead, flexible lead wires connect directly to the primary and secondary windings.

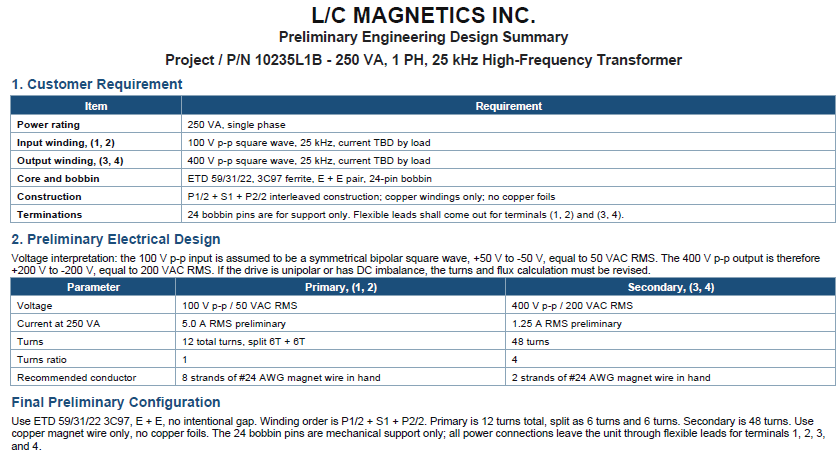

Specifications:

Transformer: 250 VA, 1 PH, 25 KHz, P/N 10235L1B
Primary: 100 V p-p, 2.5 Amps, Square Wave, Pins (1, 2)
Secondary: 400 V p-p, 0.625 Amps, Square Wave, Pins (3, 4)
Copper Windings

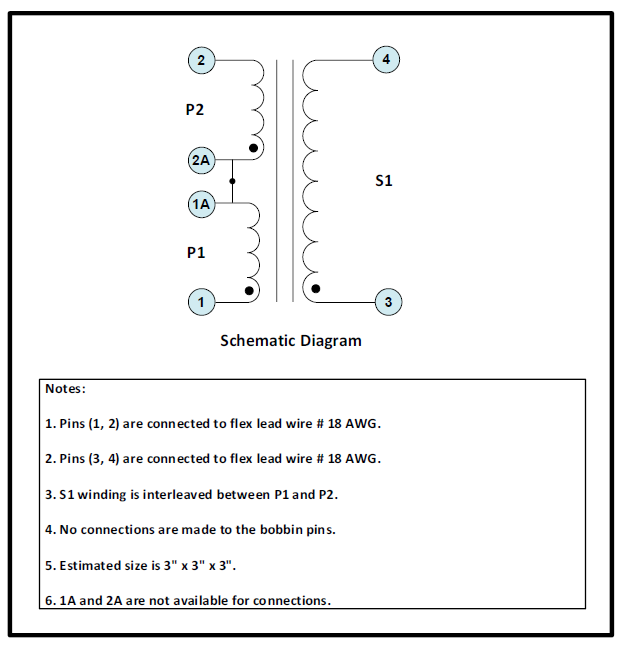

P1/2 + S1 + P2/2 interleaved construction

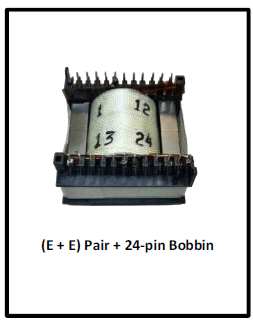

ETD 59/31/22, 3C97 (E + E) pair + 24-Pin Bobbin
24-Pin Bobbin is used for support only. No connections made to the bobbin pins.
Pins (1, 2) are flex lead wire # 18 AWG. Pins (3, 4) are flex lead wire # 18 AWG
Estimated Dimensions: 3” x 3” x 3”
