25 KVA SINGLE PHASE POLE MOUNT TRANSFORMER
The 25 kVA single phase pole mount transformer P/N 10302L1 is designed for utility and industrial power distribution applications requiring reliable voltage transformation in an outdoor pole-mounted configuration. This transformer features copper windings, an 8320 VAC primary, and a 120/240 VAC center-tapped secondary. L/C Magnetics designs and manufactures custom pole mount transformers to meet specific voltage, current, dimensional, and application requirements.
Specifications:
- Pole Mount Transformer, 1 PH, 60 Hz, P/N 10302L1
- Primary (H1, H2): 8320 L-L VAC, Wye, 5.21 Amps
- Secondary (X1, X2, X3): 120/240 VAC, with center tap
- Copper windings
- Pole Mount Enclosure: 32” W x 30” H x 30” D
- Total Weight: 680 lbs.

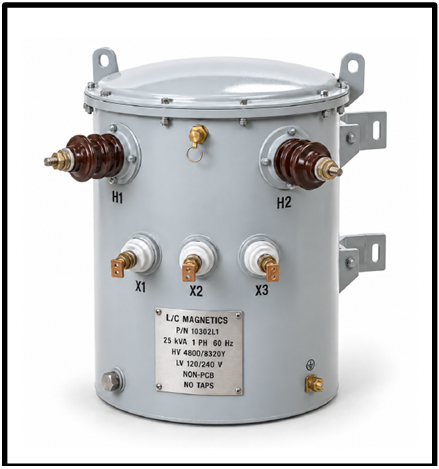

The image of the transformer is shown below:

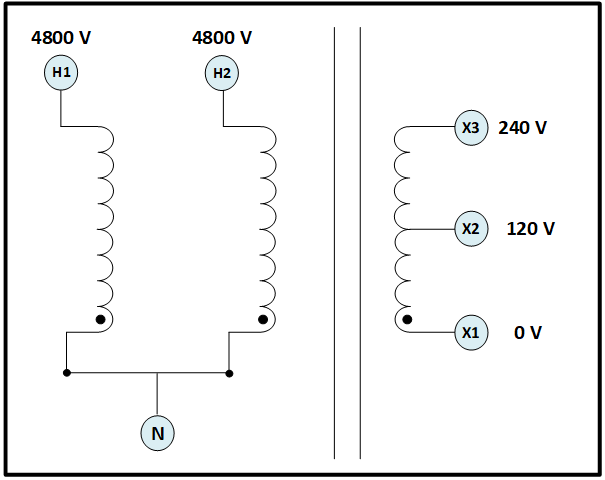

The schematic is shown below:
