NEUTRAL GROUNDING REACTOR – 33.5 KA FAULT LIMIT
The 224 uH Neutral Grounding Reactor, P/N 10336L, is a custom-designed air-core reactor manufactured by L/C Magnetics for industrial electrical power systems requiring neutral grounding impedance and short-time fault current capability. This reactor is designed for 125 amps continuous operation at 60 Hz, with a specified short-time current withstand rating of 33.5 kA for 5 seconds.
The unit features copper windings and a heavy-duty NEMA 4X outdoor enclosure suitable for installations requiring protection against moisture, snow, dust, and harsh environmental conditions.
Specifications:
- Neutral Grounding Reactor 224 uH, 60 Hz, P/N 10336L
- Continuous current: 125 A
- Short-time current withstand: 33.5 kA for 5 second
- NEMA 4X Enclosure
- Dust tight and water resistant
- Non-ventilated
- 5-second fault temperature rise: 60 degrees C
- Dimensions: 72” W x 72” D x 60” H

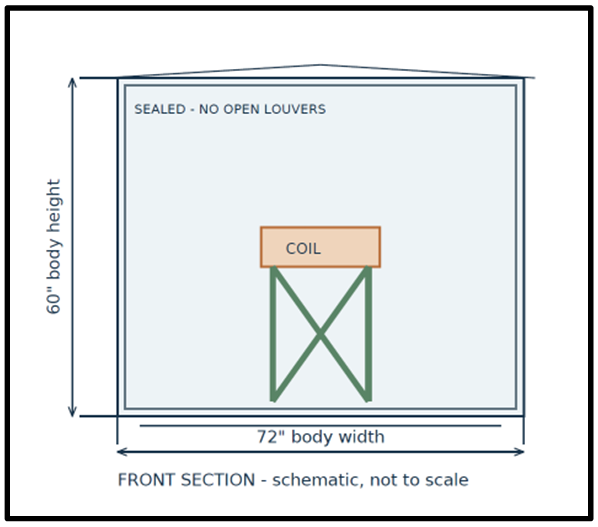

A diagram of the neutral grounding reactor inside the enclosure is shown below:
