20 KVA THREE  PHASE TRANSFORMER

The 20 kVA three phase transformer from L/C Magnetics Inc. is engineered for reliable and efficient power distribution in industrial and commercial applications. Designed for 60 Hz operation, this transformer delivers consistent performance, durability, and long service life even in demanding environments.

Our 20 kVA three phase transformer is built using high-quality core materials and precision winding techniques to ensure low losses and optimal efficiency. Whether used in manufacturing facilities, automation systems, or power distribution networks, this transformer provides stable voltage conversion and dependable operation.

Specifications:

• Transformer, 20 KVA, 3 PH, 60 Hz, P/N 19888N
• Primary (1, 2, 3): 480 VAC, 24 Amps, Delta
• Secondary (4, 5, 6): 22 VAC, 52.5 Amps, Delta
• Copper winding construction
• Primary bus bars are 1/8” x 5/8” with one hole
• Secondary bus bars are 1/4” x 2” with one hole
• Indoor Enclosure: 24” H x 18” W x 16” D

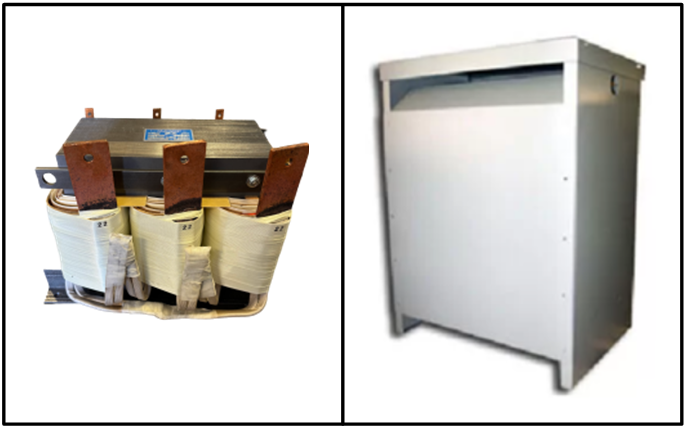

The photo of the transformer and the enclosure are shown below:

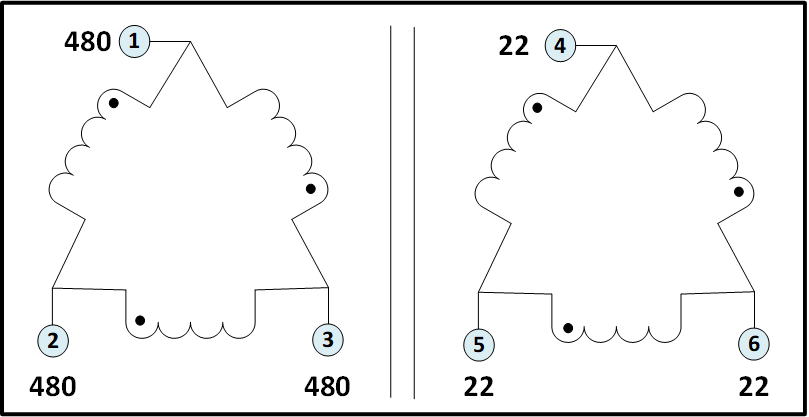

The schematic diagram is shown below:
