150 KVA TRENCH MOUNTED TRANSFORMER, 60 HZ
The 150 KVA trench mounted transformer P/N 10327L2 is a custom-designed, three-phase, 60 Hz dry-type transformer intended for trench-mounted electrical installations requiring a rugged, weather-resistant enclosure. This transformer is designed with a 380 VAC Delta primary and a 208/120 VAC Wye secondary to provide dependable voltage transformation for industrial and commercial power distribution applications.
Specifications:
- Trench Mounted Transformer, 3 PH, 60 Hz, P/N 10327L2
- Primary: 380 VAC, Delta, 228 Amps Line current
- Secondary: 208/120 VAC, Wye, 416 Amps
- Copper windings
- Insulation Class H, 180 degrees C.
- IP66 Enclosure
- Lift rings are added to aid the installation of transformer
- Enclosure dimensions: 68” W x 52” H x 50” D
- Total Weight: 2150 lbs.

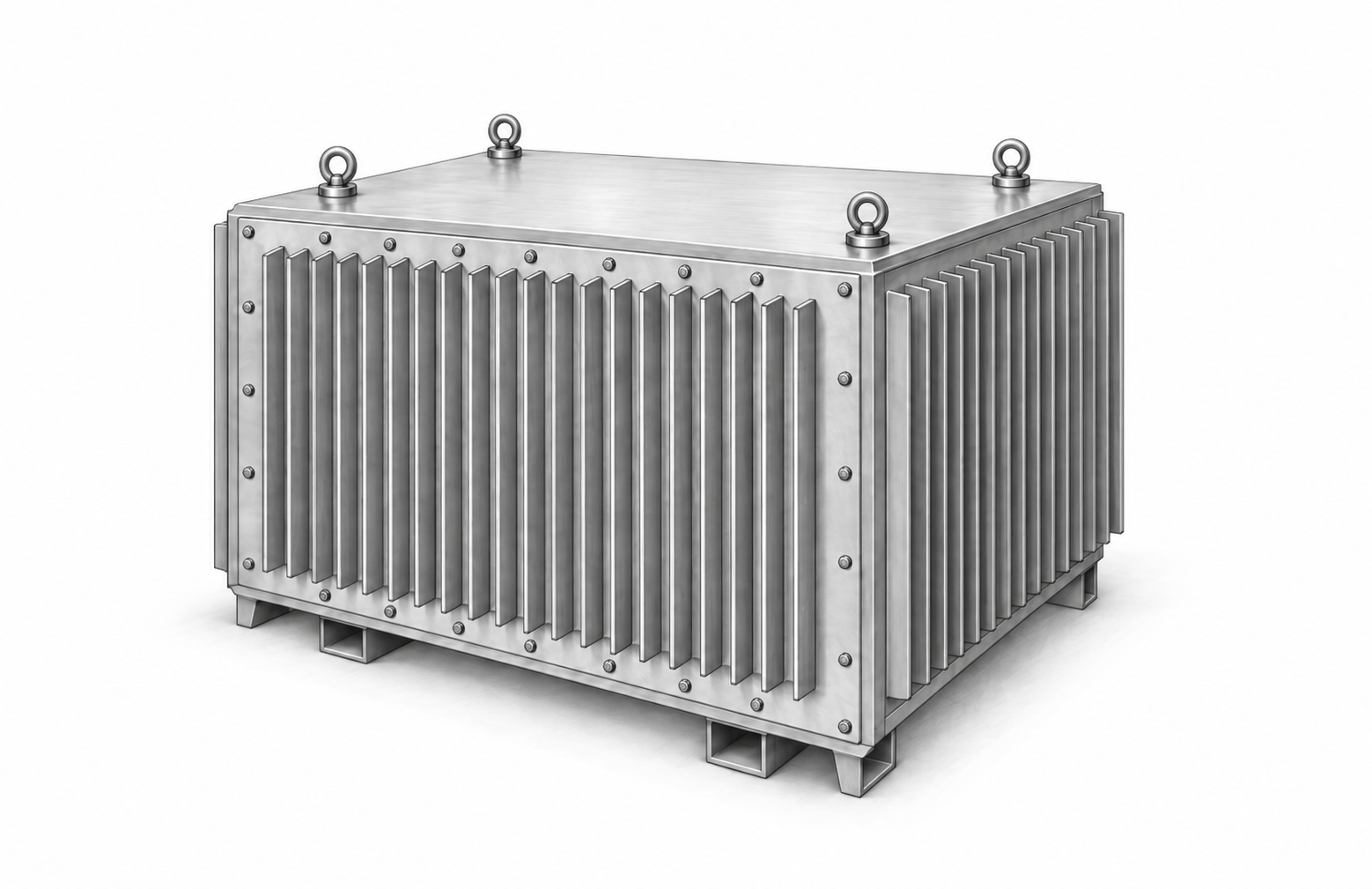

An approximate photo of the transformer is shown below:

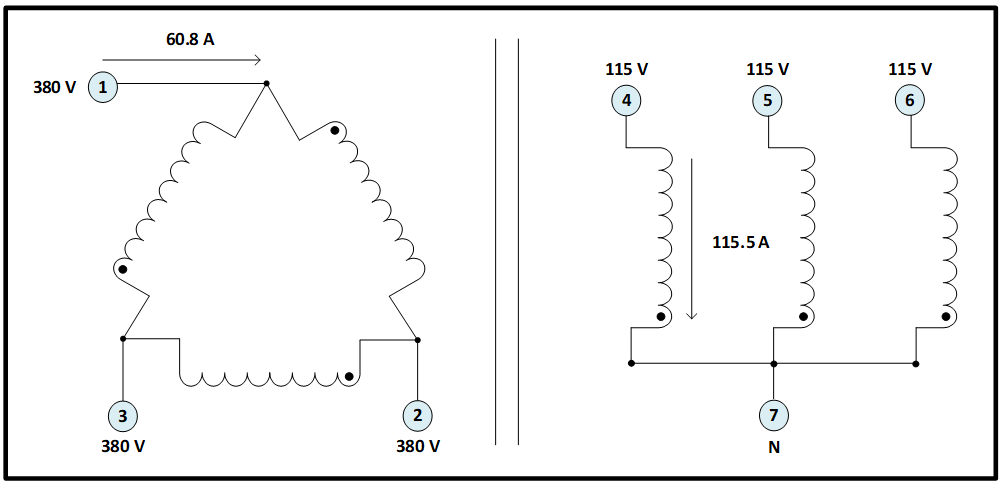

The schematic is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
CONTACT FOR A FREE QUOTE
