1000 KVA THREE PHASE ISOLATION TRANSFORMER
A high-capacity three-phase isolation transformer providing 1000 kVA power handling for industrial, commercial, and sensitive equipment applications. Designed to deliver galvanic isolation between primary and secondary windings to enhance electrical safety, suppress noise and transients, and protect downstream equipment from ground loops and power quality issues. Suitable for custom voltage configurations and robust performance in demanding environments.
Specifications:
- Isolation Transformer, 1000 KVA, 3 PH, 60 Hz, P/N 10067L
- Primary (H1, H2, H3): 690 VAC, 836.8 Amps L-L Delta
- Secondary (X1, X2, X3, X0): 480 VAC, 1202.8 Amps L-L, Wye
- Aluminum winding
- NEMA 3R Enclosure
- Dimensions: 1900 x 1100 x 2100 mm
- Weight: 2500 kg

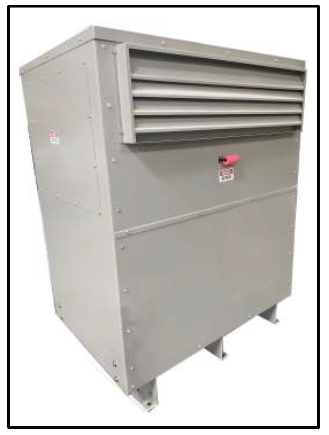

A photo of the enclosure is shown below:

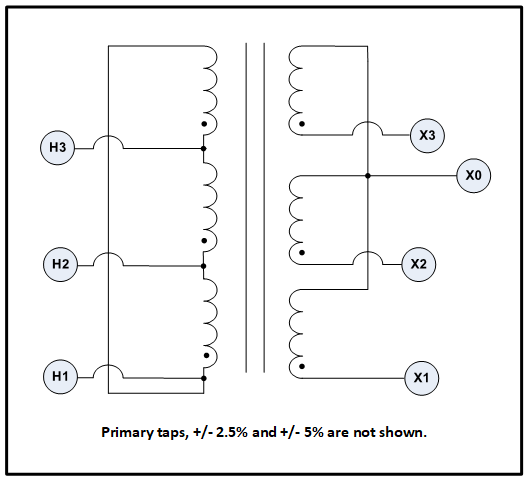

The schematic diagram of the transformer is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
