1000 KVA NON-PCB OIL FILLED TRANSFORMER

Specifications:

• Non-PCB Oil Filled Transformer, 1000 KVA, 3 PH, 60 Hz, P/N 10326L1
• Primary: 12470 VAC L-L, Delta, 47 Amps
• Secondary: 480 VAC L-L, Wye, 277 VAC L-N, 1202 Amps
• Copper windings
• Bay-o-Net Fuses on primary side
• Current-limiting Fuses on primary side
• Tap-changer +/- 2.5% & +/- 5% on the primary side
• Made in USA
• Drawings shall be approved before fabrication

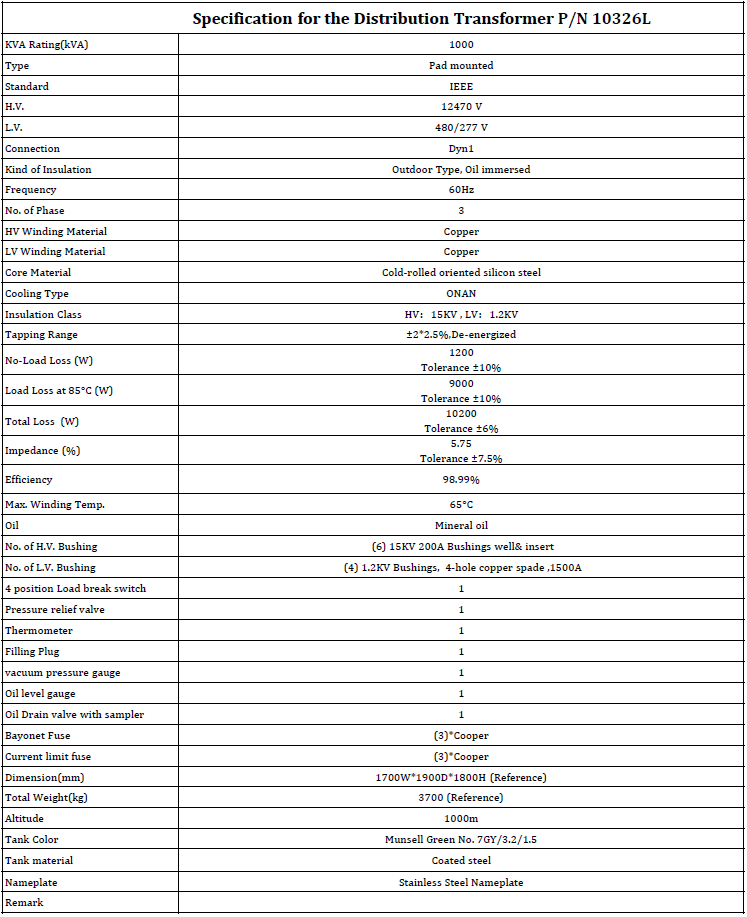

Details are summarized in the table below:

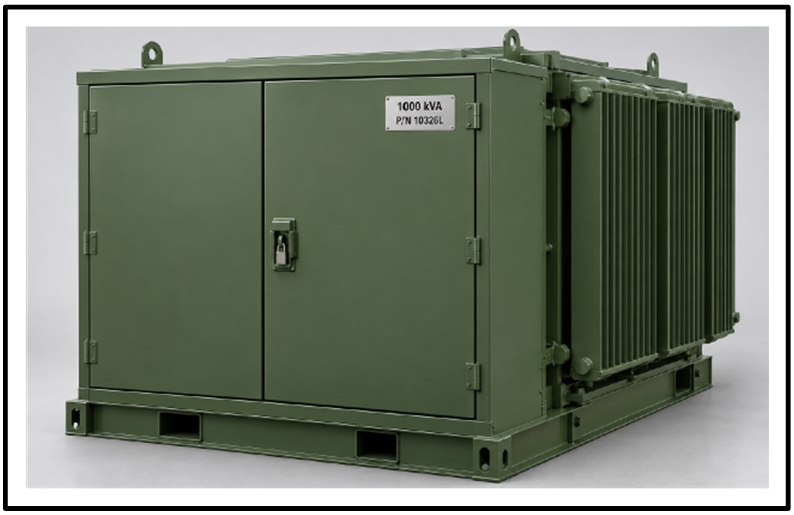

An approximate photo of the Oil Filled Transformer is shown below:

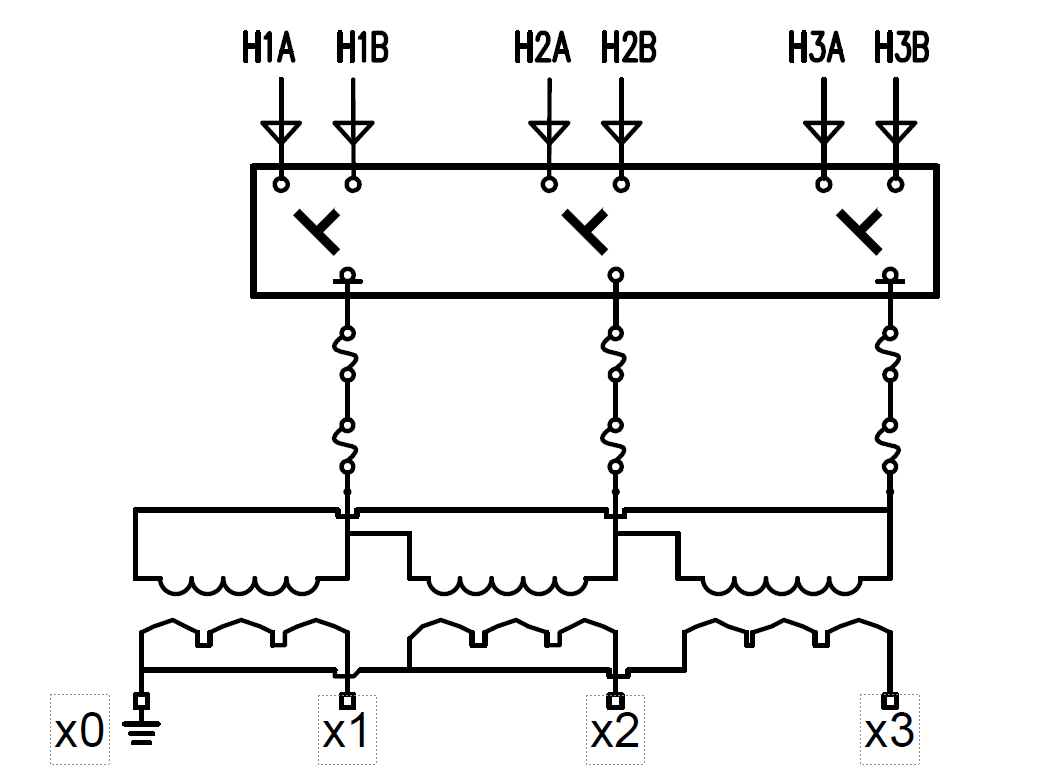

The schematic of the transformer is shown below:

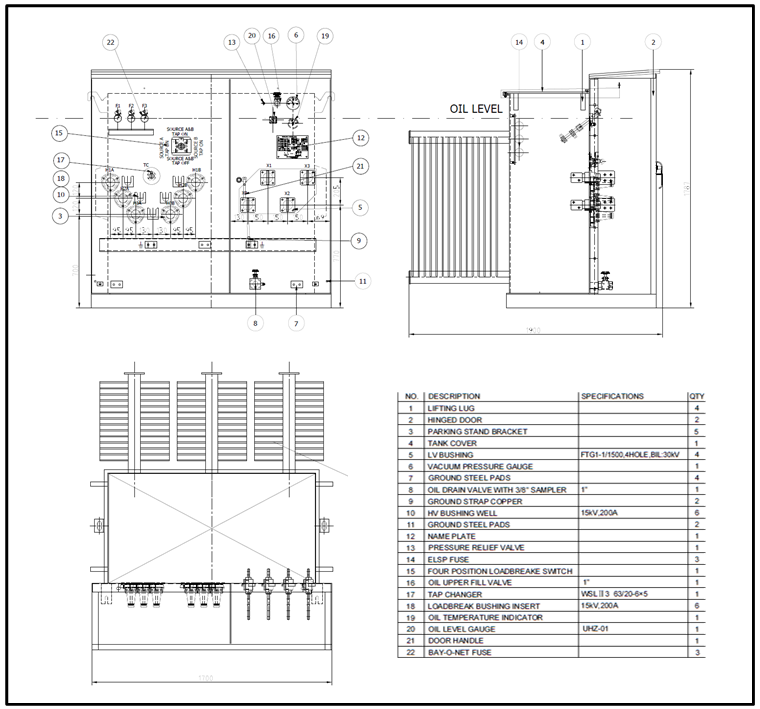

The structure/build of the Oil Filled Transformer is shown below:

To discuss your specific application, please call us at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
