THREE PHASE BUCK TRANSFORMER, 75 KVA
INPUT 460/480/500 VAC, OUTPUT 208 VAC
P/N 18714B

Specifications:

    • Buck transformer: 75 KVA, 3 PH, 50/60 Hz, P/N 18714B
    • Input: 460 / 480 / 500 VAC, 94 Amps max
    • Output: 208 VAC, 208 Amps
    • Open core and coil, 17”H x 22”W x 17”D
    • Copper winding construction
    • Input connections are compression lugs
    • Output connections are 1” x ¼” copper bus bars with one hole
    • Weight: 400 lbs. approximately

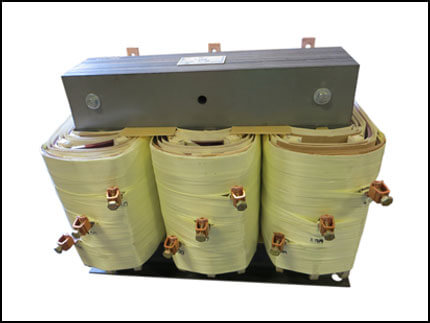

The photos of the buck transformer is shown below:



18714B_AT



The schematic of the buck transformer is shown below:



18714B_AT
