THREE PHASE BUCK BOOST TRANSFORMER, 18 KVA
INPUT 208 VAC, OUTPUT 176/264/360/480 VAC, P/N 19298
Our engineering team can design Buck Boost Transformers based on your existing transformer or your specifications for a new custom transformer specifically engineered and manufactured by L/C Magnetics. We offer a wide range of Buck and Boost Transformers designed to efficiently adjust voltage levels for various applications. These transformers are unique because they have efficient under-voltage and over-voltage conditions compared to an isolation transformer. Buck Boost Transformers, also known as Auto Transformers, operate by sharing a part of the primary and secondary windings. This design allows them to achieve voltage adjustment with minimal power consumption compared to a standard transformer of equivalent capacity. However, they are not suitable for full voltage transformation like traditional step-up or step-down transformers. A prime example of our Buck and Boost Transformers is our Three Phase Auto Transformer 18 KVA
Specifications:
- Buck Boost Transformer: 18 KVA, 3 PH, 60 Hz, P/N 19298
- Input: 208 VAC L-L, 50 Amps
- Output: 176/264/360/480 VAC L-L, 18 KVA max
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Open core and coil: 12”H x 15”W x 12”D approximately
- Estimated weight: 280 lbs.
Price: $ 4995.00
Lead time: 4 weeks ARO, FOB Anaheim.
Call 714-624-4740 to order for similar products.
We can redesign if your requirements are different.

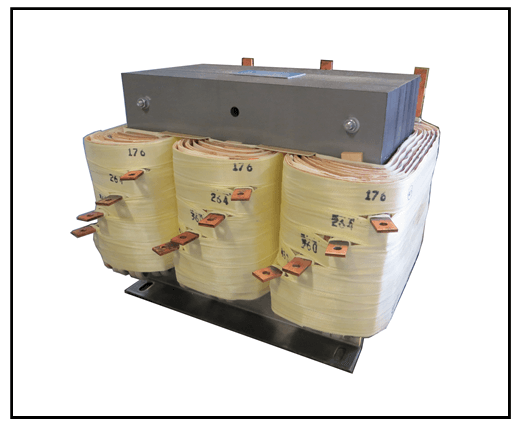

The photos of the buck boost transformer is shown below:

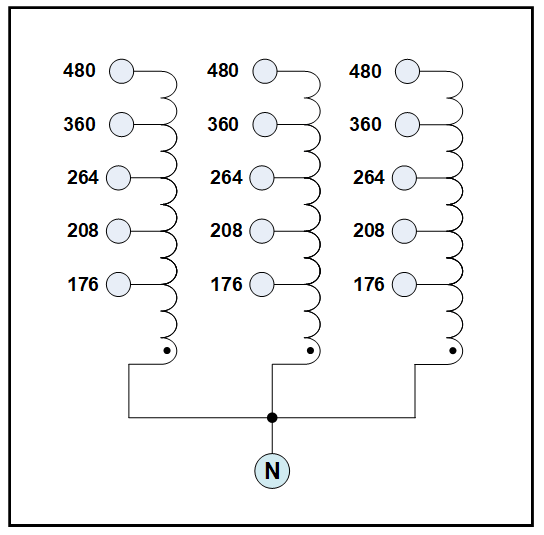

The schematic diagram is shown below:
