THREE PHASE AUTO TRANSFORMER, 6 KVA
INPUT 440 VAC, OUTPUT 380 VAC, P/N 19372N
Specifications:
- Buck Boost transformer: 6 KVA, 3 PH, 60 Hz, P/N 19372N
- Input: 440 VAC L-L, 7.88 Amps
- Output: 380 VAC L-L, 9.12 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Indoor enclosure with louver, 17”L x 9.5”W x 9.5”W
- Estimated weight: 70 lbs.
The photos of the transformer and the enclosure is shown below:

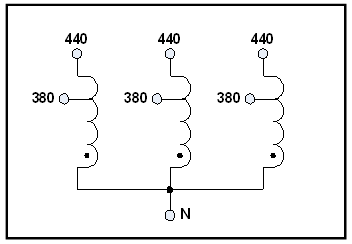

The schematic diagram is shown below:

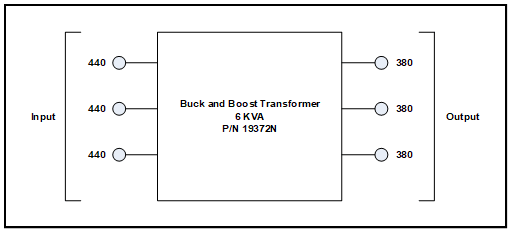

The input/output connection block diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
