THREE PHASE AUTO TRANSFORMER, 20 KVA
INPUT 198/204/210 VAC, OUTPUT 230 VAC, P/N 19284N
Specifications:
- Boost Transformer, 20 KVA, 3 PH, 60 Hz, P/N 19284N
- Input: 198/204/210 VAC L-L, 58 Amps max
- Output: 230 VAC L-L, 50 Amps
- Copper winding construction
- Input/output copper bus bars are 1/8” x 5/8” with one hole
- Indoor enclosure: 24”H x 18”W x 16”D
- Estimated weight: 200 lbs.

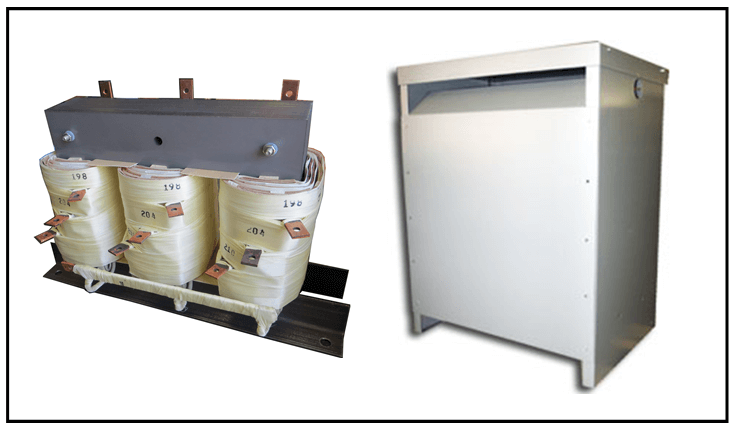

The photo of the boost transformer and the enclosure is shown below:
The schematic diagram is shown below:
To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
