THREE PHASE AUTO TRANSFORMER, 12 KVA
INPUT 480 VAC, OUTPUT 460 VAC, P/N 19342N

Specifications:

  • Buck Boost transformer: 12 KVA, 3 PH, 60 Hz, P/N 19342N
  • Input: 480 VAC L-L, 14.5 Amps
  • Output: 460 VAC L-L, 15.1 Amps
  • Copper winding construction
  • Input/output copper bus bars are 1/8” x 5/8” with one hole
  • Indoor enclosure with louver, 17”L x 9.5”W x 9.5”W
  • Estimated weight: 70 lbs.

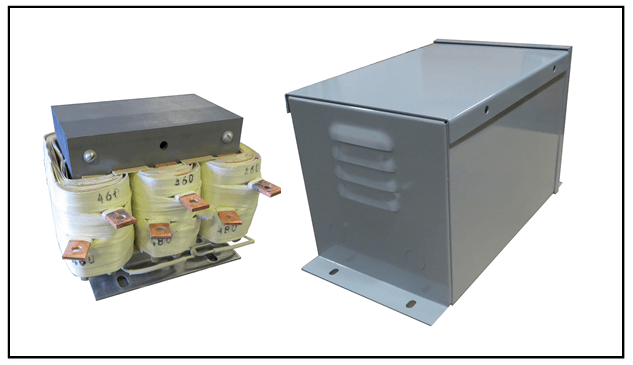

The photos of the transformer and the enclosure is shown below:

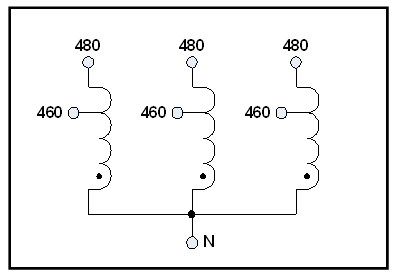

The schematic diagram is shown below:

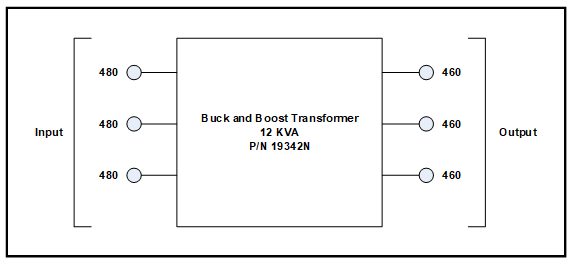

The input/output connection block diagram is shown below:



Buck-and-booster-transformer-12kva-input-ouput-block-diagram
