THREE PHASE AUTO TRANSFORMER 66 KVA
INPUT 480 VAC, OUTPUT 380 VAC, P/N 19063

Specifications:

    • Buck Transformer, 66 KVA, 3 PH, 60 Hz, P/N 19063
    • Input: 480 VAC, 80 Amps
    • Output: 380 VAC, 100 Amps
    • Open core and Coil: 13″H x 14.5″W x 11″D
    • Input copper bus bars are 1/8” x 5/8” with one hole
    • Output copper bus bars are 1″ x 1/4″ with one hole
    • Copper winding construction
    • Estimated weight: TBD

The photos of the open core & coil transformer is shown below:



19063_AT

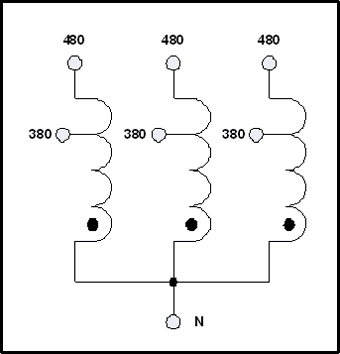

The schematic of the buck transformer is shown below:



19063_AT



To discuss your specific application, please call our phone number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
